24V DC CURRENT FLOW – A FUNDAMENTAL CONCEPT EVERY AUTOMATION ENGINEER MUST UNDERSTAND

Many PLC, DCS, and Instrumentation troubleshooting issues can be solved quickly if you clearly understand how 24V DC current flows in a circuit.

A device turns ON only when a complete electrical path exists.

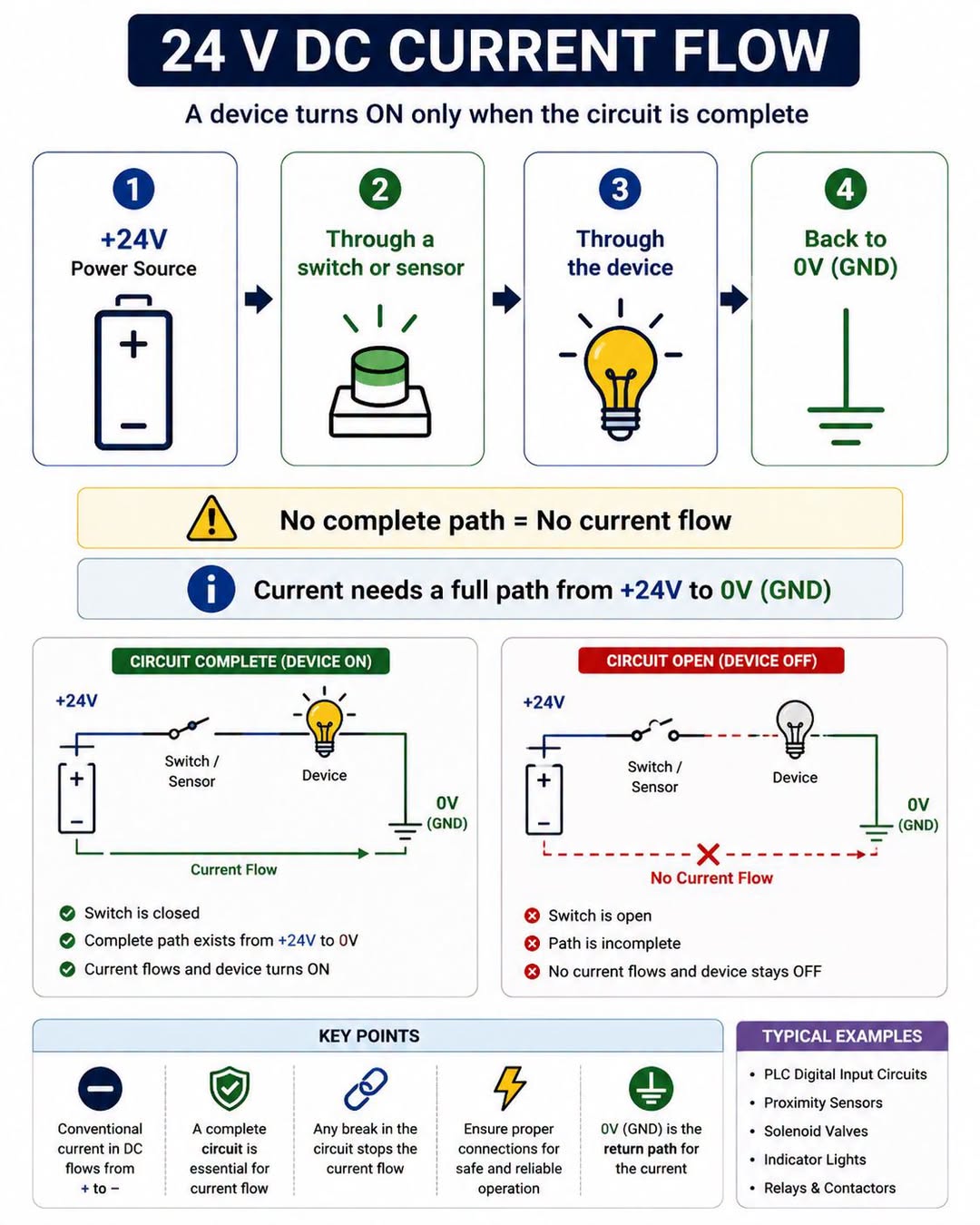

The current path is:

+24V DC Power Supply

Through a Switch, Relay Contact, or Sensor

Through the Load (Lamp, Solenoid Valve, Relay Coil, PLC Input, etc.)

Back to 0V (DC Common/GND)

Complete Path = Current Flows = Device ON

Open Circuit = No Current Flow = Device OFF

Important Points:

• Current always requires a complete loop.

• Any broken wire, loose terminal, blown fuse, faulty contact, or damaged sensor can interrupt the circuit.

• In PLC systems, most digital inputs operate by detecting the presence or absence of 24V DC.

• 0V is not just a reference point—it is the return path that completes the circuit.

• Understanding current flow helps engineers troubleshoot field faults much faster.

Typical Applications:

PLC Digital Inputs

Proximity Sensors

Limit Switches

Solenoid Valves

Relays & Contactors

Indication Lamps

Control Panels

Troubleshooting Tip:

If a device is not operating, don’t just check for +24V.

Always verify:

+24V Supply Available

Switch/Sensor Contact Status

Voltage Across the Load

Continuity of Return Path (0V)

Many faults occur because the return path is open even when +24V is present.

Remember:

Voltage may be present, but current flows only when the circuit is complete.

Understanding this simple principle can save hours of troubleshooting in industrial automation systems.

Have you ever faced a field issue where a broken 0V return wire caused hours of troubleshooting? Share your experience in the comments.
