𝙒𝙝𝙖𝙩 𝙞𝙨 𝙖𝙣 𝙊𝙨𝙘𝙞𝙡𝙡𝙖𝙩𝙤𝙧?

𝙒𝙝𝙖𝙩 𝙞𝙨 𝙖𝙣 𝙊𝙨𝙘𝙞𝙡𝙡𝙖𝙩𝙤𝙧?

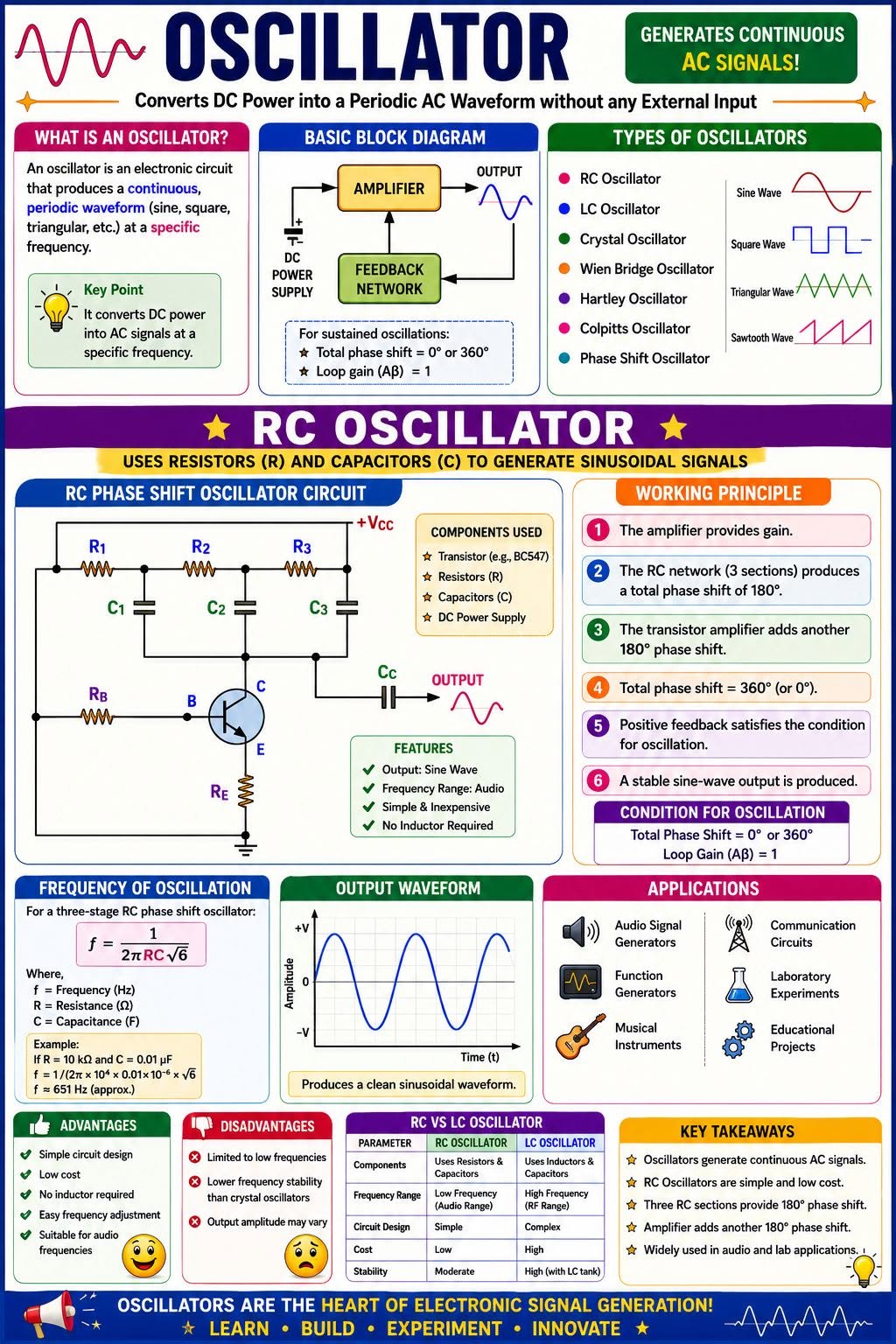

An **oscillator** is an electronic circuit that generates a continuous periodic waveform (sine wave, square wave, triangular wave, etc.) without requiring an external input signal.

𝙈𝙖𝙞𝙣 𝙋𝙖𝙧𝙩𝙨 𝙤𝙛 𝙖𝙣 𝙊𝙨𝙘𝙞𝙡𝙡𝙖𝙩𝙤𝙧

1. Amplifier

2. Feedback Network

3. DC Power Supply

Types of Oscillators

* RC Oscillator

* LC Oscillator

* Crystal Oscillator

* Wien Bridge Oscillator

* Hartley Oscillator

* Colpitts Oscillator

* Phase Shift Oscillator

𝙒𝙤𝙧𝙠𝙞𝙣𝙜 𝙋𝙧𝙞𝙣𝙘𝙞𝙥𝙡𝙚

1. The amplifier provides gain.

2. The RC network produces a phase shift.

3. Three RC sections provide a total phase shift of **180°**.

4. The transistor amplifier provides another **180°** phase shift.

5. Total phase shift becomes **360° (or 0°)**.

6. Positive feedback sustains oscillations.

Frequency of Oscillation

𝘼𝙥𝙥𝙡𝙞𝙘𝙖𝙩𝙞𝙤𝙣𝙨

Audio Signal Generators

Function Generators

Musical Instruments

Communication Circuits

Laboratory Experiments

Educational Projects

𝘼𝙙𝙫𝙖𝙣𝙩𝙖𝙜𝙚𝙨

Simple circuit design

Low cost

No inductor required

Easy frequency adjustment

## Disadvantages

✘ Limited to low frequencies

✘ Lower frequency stability than crystal oscillators

✘ Output amplitude may vary

𝙆𝙚𝙮 𝙋𝙤𝙞𝙣𝙩𝙨

Generates sine-wave output

Uses RC network for phase shift

Suitable for audio frequencies

No inductor required

Widely used in electronics laboratories
