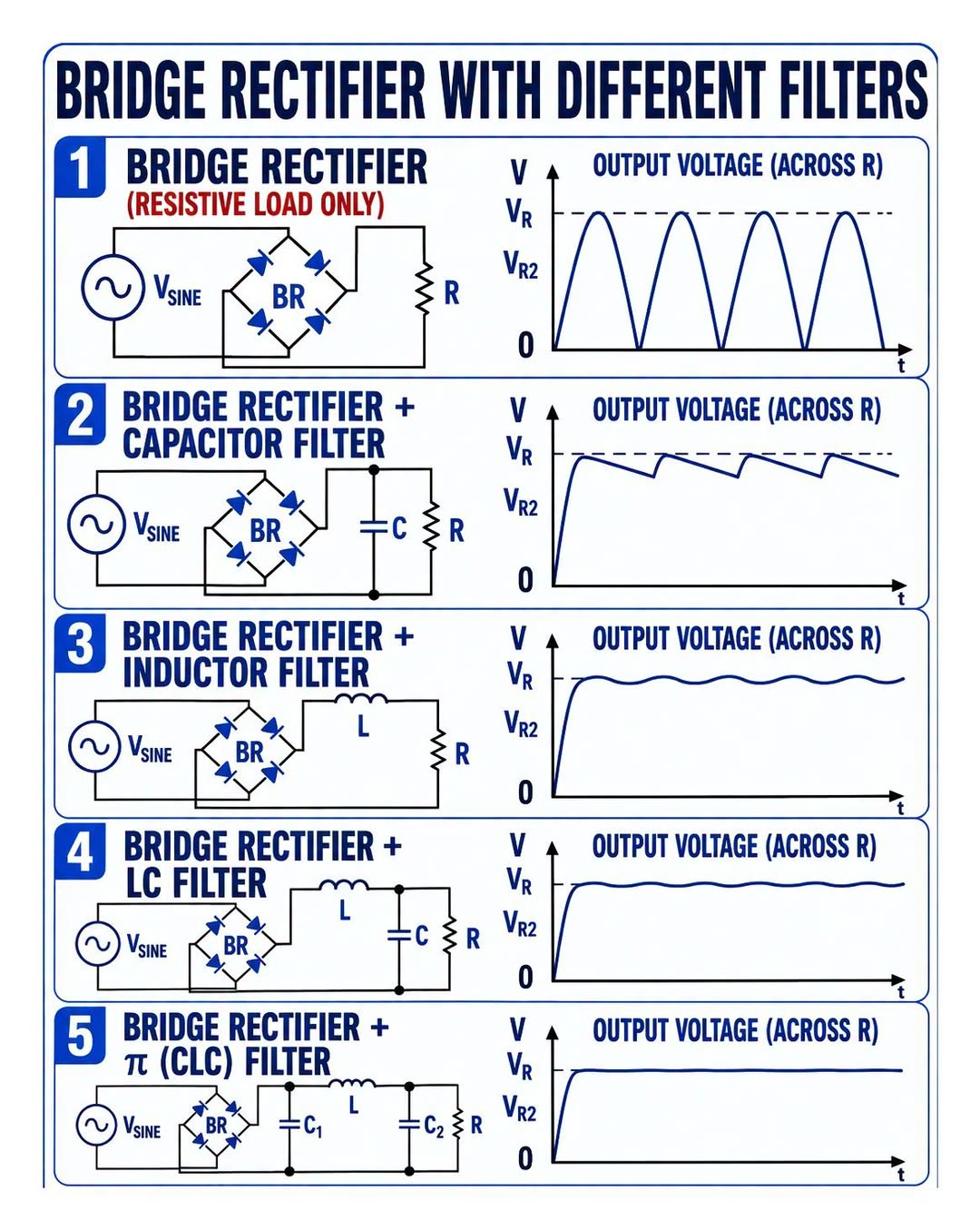

A bridge rectifier converts alternating current (AC) into pulsating direct current (DC) using four diodes arranged in a bridge configuration. Different filters can be added to reduce ripple voltage and produce a smoother DC output. A bridge rectifier with only a resistive load produces a full-wave pulsating DC waveform. The output voltage falls to zero between peaks, resulting in large ripple content. Adding a capacitor filter greatly improves the output. The capacitor charges to the peak voltage and discharges slowly through the load during the intervals between peaks. This provides a higher average DC voltage with reduced ripple. An inductor filter is connected in series with the load. The inductor opposes sudden changes in current, making the output current more continuous and reducing ripple, especially at higher load currents. An LC filter combines a series inductor and a shunt capacitor. The inductor blocks AC ripple components, while the capacitor bypasses them to ground. This arrangement offers better smoothing than a single capacitor or inductor filter. A π (CLC) filter uses two capacitors separated by an inductor. The first capacitor removes most of the ripple, the inductor suppresses the remaining AC variations, and the second capacitor further smooths the output. It provides the lowest ripple and the smoothest DC among these passive filters. For applications requiring highly stable and nearly ripple-free DC, a voltage regulator is usually connected after the rectifier and filter stage. The regulator maintains a constant output voltage despite changes in input voltage or load current, producing the cleanest DC supply for sensitive electronic circuits such as microcontrollers, communication systems, sensors, and precision instrumentation. Post navigation An NTC thermistor is a temperature-sensitive resistor 𝙒𝙝𝙖𝙩 𝙞𝙨 𝙖𝙣 𝙊𝙨𝙘𝙞𝙡𝙡𝙖𝙩𝙤𝙧?
