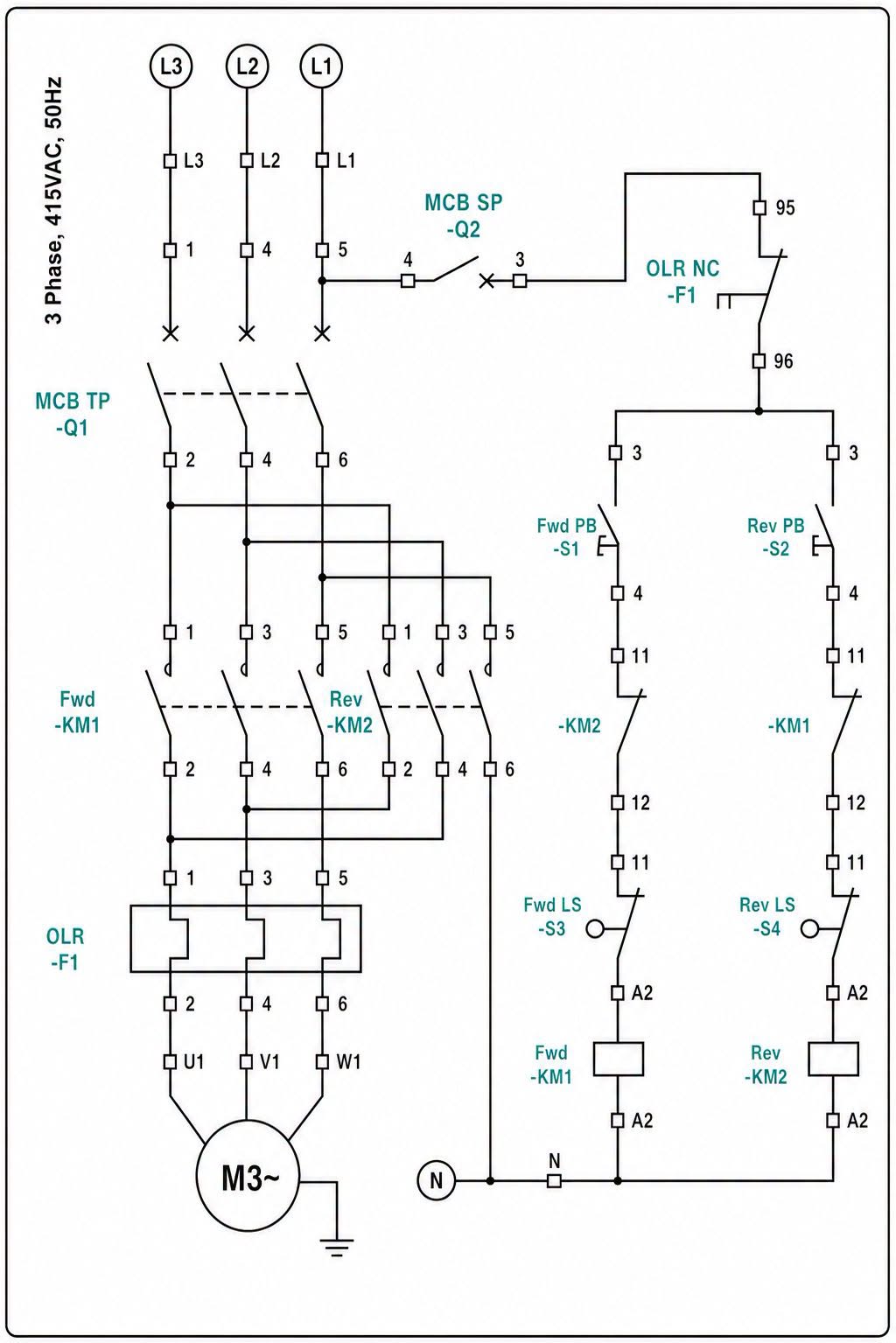

Forward & Reverse Motor Control Circuit Explained This diagram illustrates a classic Forward-Reverse Motor Control Circuit used in industrial automation to change the direction of a three-phase induction motor safely and efficiently. The power circuit consists of a 3-phase supply, MCB, overload relay (OLR), and two contactors: KM1 (Forward) and KM2 (Reverse). By interchanging two motor phases through the reverse contactor, the motor rotation direction changes. The control circuit includes Forward and Reverse push buttons, limit switches, overload protection contacts, and electrical interlocking. The interlocking arrangement ensures that both contactors cannot energize simultaneously, preventing short circuits and equipment damage. Such circuits are widely used in cranes, hoists, conveyors, rolling shutters, material handling systems, and machine tools where bidirectional movement is required. Understanding forward-reverse logic is a fundamental skill for electricians, maintenance engineers, PLC programmers, and automation professionals. Post navigation Electromechanical Relay Explained Belt Drive RPM Calculation
