Resonant Wire Pressure Sensor

Resonant Wire Pressure Sensor – Working Principle Explained:

Pressure measurement is a critical requirement in industries such as oil & gas, aerospace, hydraulic systems, structural monitoring, and research laboratories. One of the most accurate and reliable technologies used for this purpose is the Resonant Wire Pressure Sensor.

What is a Resonant Wire Pressure Sensor?

A resonant wire pressure sensor measures pressure by detecting changes in the natural frequency of a tensioned wire. Instead of directly measuring displacement or strain, it converts pressure variations into frequency changes, making it highly accurate and stable over long periods.

Construction

The sensor mainly consists of:

Pressure sensing diaphragm

Tensioned resonant wire (vibrating element)

Hermetically sealed housing

Electrical excitation and signal connection system

The wire is stretched between two supports and maintained under tension inside a sealed chamber.

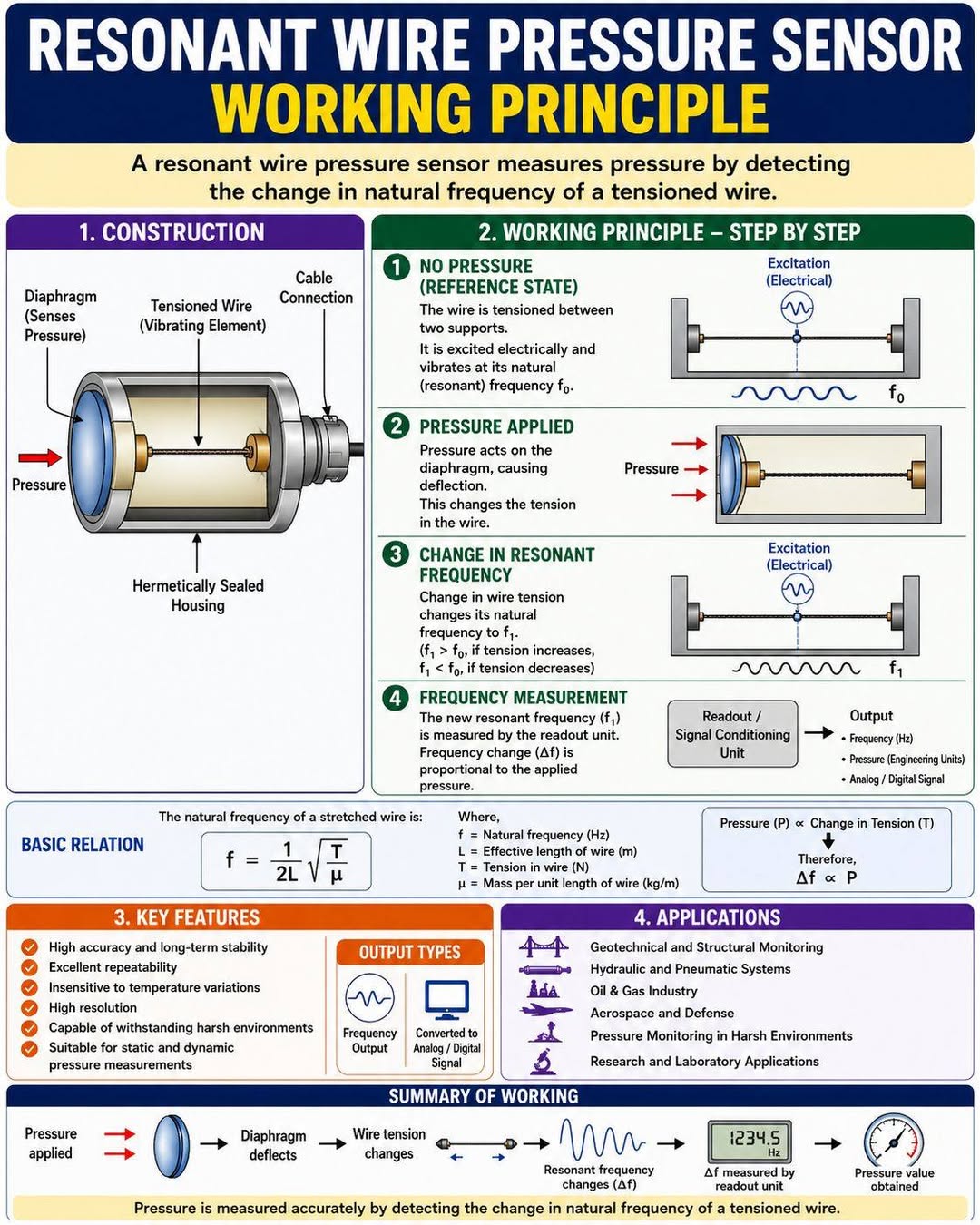

Working Principle

Reference Condition (No Pressure)

When no pressure is applied, the wire remains under its initial tension and vibrates at its natural resonant frequency (f₀) when electrically excited.

Pressure Application

As process pressure acts on the diaphragm, the diaphragm deflects. This movement changes the tension of the resonant wire.

Frequency Change

The change in wire tension alters its natural frequency:

Increased tension → Higher frequency

Decreased tension → Lower frequency

The resonant frequency shifts from f₀ to a new value f₁.

Signal Measurement

The electronic readout unit continuously measures the frequency change (Δf). Since the frequency shift is proportional to the applied pressure, the system accurately calculates the pressure value.

Basic Relationship

The natural frequency of a stretched wire depends on:

Wire length

Wire tension

Mass per unit length

As tension changes due to diaphragm movement, the resonant frequency changes accordingly, allowing precise pressure determination.

Key Advantages

Extremely high accuracy

Excellent long-term stability

Outstanding repeatability

High resolution measurement

Minimal influence from temperature variations

Suitable for harsh industrial environments

Reliable for both static and dynamic pressure measurements

Industrial Applications

Oil & Gas Facilities

Hydraulic and Pneumatic Systems

Aerospace and Defense Equipment

Geotechnical Monitoring

Structural Health Monitoring

Research Laboratories

High-Reliability Process Industries

Summary

Pressure applied → Diaphragm deflects → Wire tension changes → Resonant frequency changes → Frequency measured electronically → Accurate pressure value obtained.

The resonant wire pressure sensor is a perfect example of how frequency-based measurement technology delivers exceptional precision, long-term reliability, and robust performance in demanding industrial applications.
