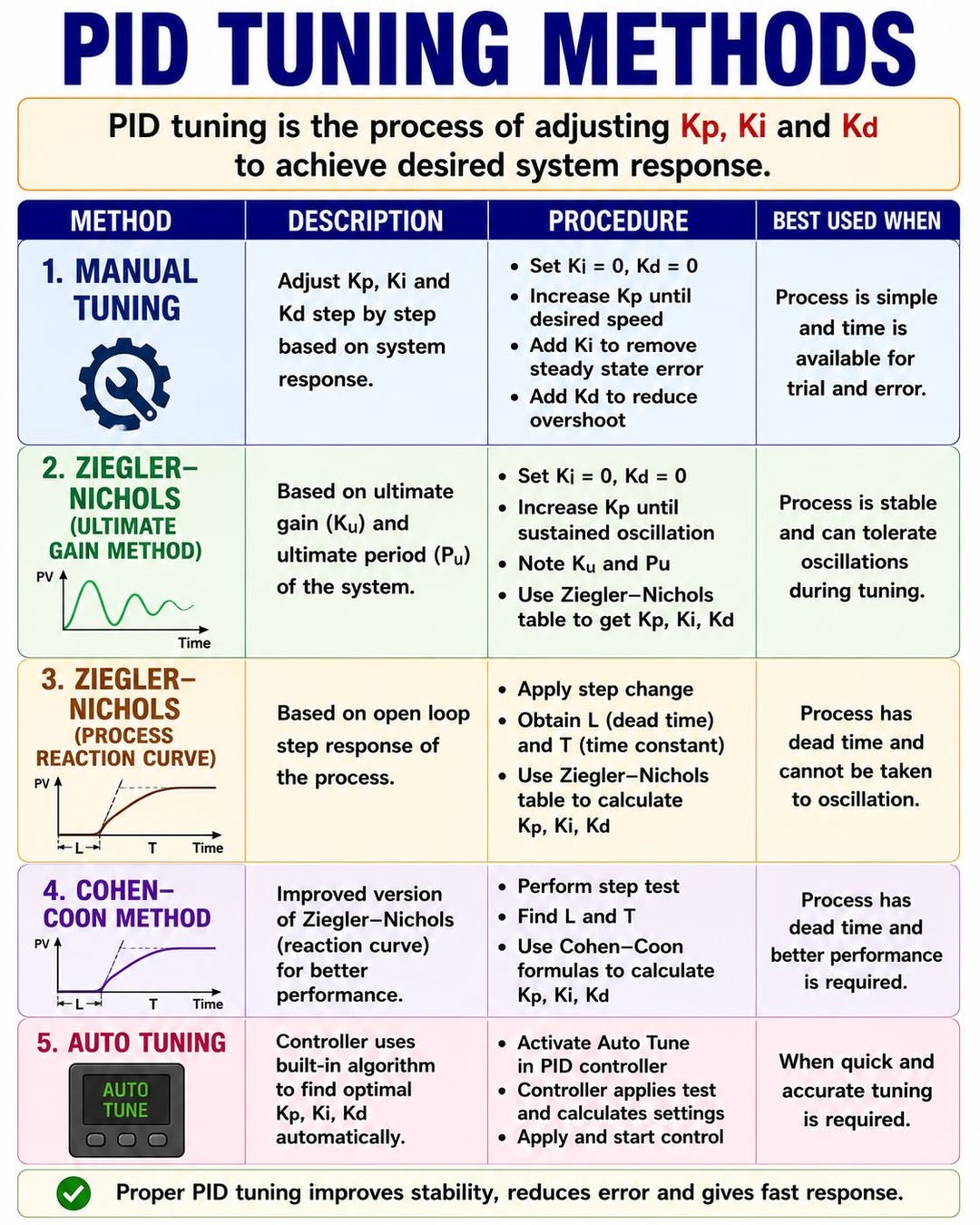

PID Tuning Methods

PID Tuning Methods

1. MANUAL TUNING

Adjust Kp, Ki, and Kd step by step while observing the system’s real-time response. Start with zero integral and derivative gains. Increase Kp until desired speed is achieved. Add Ki to eliminate steady-state error. Finally add Kd to reduce overshoot and damping. Best when the process is simple and you have enough time for trial-and-error adjustments.

2. ZIEGLER–NICHOLS (ULTIMATE GAIN METHOD)

A closed-loop tuning method based on finding the ultimate gain (Ku) and ultimate period (Pu). Set Ki and Kd to zero, then increase Kp until the system produces sustained oscillations. Record the gain at this point as Ku and the oscillation period as Pu. Use the classic Ziegler–Nichols table to calculate final Kp, Ki, and Kd values. Best when the process is stable and can tolerate temporary oscillations during tuning.

3. ZIEGLER–NICHOLS (PROCESS REACTION CURVE)

An open-loop tuning method that uses the system’s step response. Apply a small step change to the process input. Record the output curve and identify two key parameters: L (dead time or lag) and T (time constant). Use the Ziegler–Nichols reaction curve table to determine Kp, Ki, and Kd. Best when the process has significant dead time and cannot be pushed into sustained oscillation.

4. COHEN–COON METHOD

An improved version of the Ziegler–Nichols reaction curve method. Perform the same open-loop step test to find dead time (L) and time constant (T). Instead of using the Ziegler–Nichols table, apply the Cohen–Coon formulas which provide more aggressive tuning for better disturbance rejection. Best when the process has dead time and you need better performance than Ziegler–Nichols can offer.

5. AUTO TUNING

The PID controller uses a built-in intelligent algorithm to find optimal gains automatically. Simply activate the Auto Tune feature on the controller. The controller applies a test signal, analyzes the system response, and calculates the best Kp, Ki, and Kd values. Then apply the settings and start normal control. Best when quick, accurate, and hands-free tuning is required without deep technical knowledge.

Proper PID tuning improves stability, reduces steady-state error, and gives faster response to changes.
