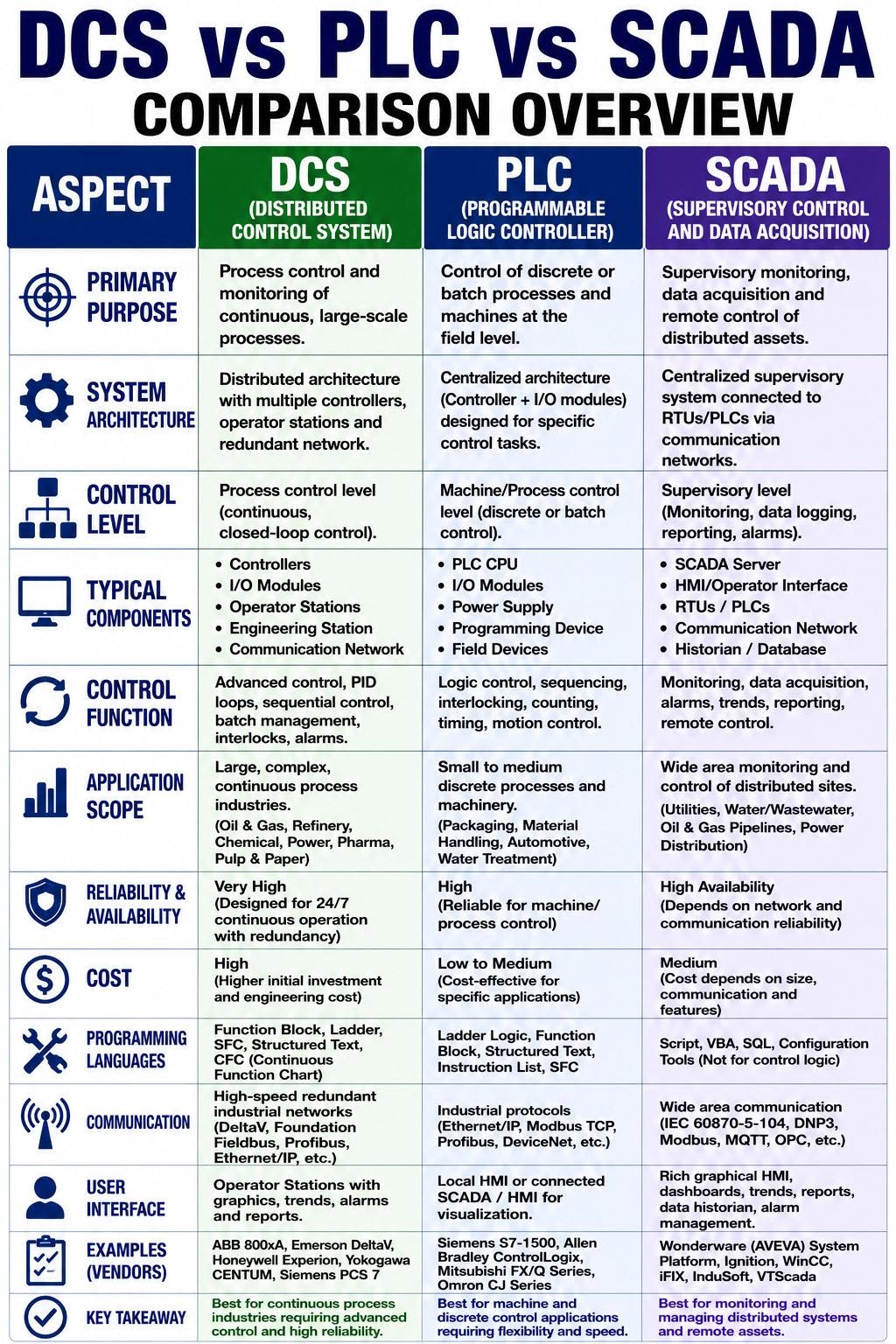

1. PRIMARY PURPOSE

DCS is designed for process control and monitoring of continuous, large-scale processes. PLC handles control of discrete or batch processes and machines at the field level. SCADA provides supervisory monitoring, data acquisition, and remote control of distributed assets.

2. SYSTEM ARCHITECTURE

DCS features distributed architecture with multiple controllers, operator stations, and redundant network. PLC uses centralized architecture with controller and I/O modules designed for specific control tasks. SCADA has centralized supervisory system connected to RTUs/PLCs via communication networks.

3. CONTROL LEVEL

DCS operates at process control level with continuous, closed-loop control. PLC works at machine or process control level for discrete or batch control. SCADA functions at supervisory level for monitoring, data logging, reporting, and alarms.

4. TYPICAL COMPONENTS

DCS includes controllers, I/O modules, operator stations, engineering station, and communication network. PLC consists of CPU, I/O modules, power supply, programming device, and field devices. SCADA includes server, HMI/operator interface, RTUs/PLCs, communication network, and historian/database.

5. CONTROL FUNCTION

DCS performs advanced control, PID loops, sequential control, batch management, interlocks, and alarms. PLC handles logic control, sequencing, interlocks, counting, timing, and motion control. SCADA focuses on monitoring, data acquisition, alarms, trends, reporting, and remote control.

6. APPLICATION SCOPE

DCS is used in large, complex, continuous process industries like oil and gas, refinery, chemical, power, pharma, and pulp and paper. PLC serves small to medium discrete processes and machinery such as packaging, material handling, automotive, and water treatment. SCADA covers wide area monitoring and control of distributed sites like utilities, water/wastewater, oil and gas pipelines, and power distribution.

7. RELIABILITY & AVAILABILITY

DCS offers very high reliability designed for 24/7 continuous operation with redundancy. PLC provides high reliability for machine and process control. SCADA ensures high availability depending on network and communication reliability.

8. COST

DCS has high initial investment and engineering cost. PLC is low to medium cost, cost-effective for specific applications. SCADA cost is medium, depending on size, communication, and features.

9. PROGRAMMING LANGUAGES

DCS uses Function Block, Ladder, SFC, Structured Text, and CFC. PLC employs Ladder Logic, Function Block, Structured Text, Instruction List, and SFC. SCADA uses Script, VBA, SQL, and configuration tools, not for control logic.

10. COMMUNICATION

DCS uses high-speed redundant industrial networks like DeltaV, Foundation Fieldbus, Profibus, and Ethernet/IP. PLC uses industrial protocols such as Ethernet/IP, Modbus TCP, Profibus, and DeviceNet. SCADA uses wide area communication like IEC 60870-5-104, DNP3, Modbus, MQTT, and OPC.

11. USER INTERFACE

DCS provides operator stations with graphics, trends, alarms, and reports. PLC offers local HMI or connected SCADA/HMI for visualization. SCADA delivers rich graphical HMI, dashboards, trends, reports, data historian, and alarm management.

12. EXAMPLES (VENDORS)

DCS vendors include ABB 800xA, Emerson DeltaV, Honeywell Experion, Yokogawa CENTUM, and Siemens PCS 7. PLC vendors include Siemens S7-1500, Allen Bradley ControlLogix, Mitsubishi FX/Q Series, and Omron CJ Series. SCADA platforms include Wonderware (AVEVA) System Platform, Ignition, WinCC, iFIX, InduSoft, and VTScada.

13. KEY TAKEAWAY

DCS is best for continuous process industries requiring advanced control and high reliability. PLC is best for machine and discrete control applications requiring flexibility and speed. SCADA is best for monitoring and managing distributed systems and remote assets.
