Redundant PLC

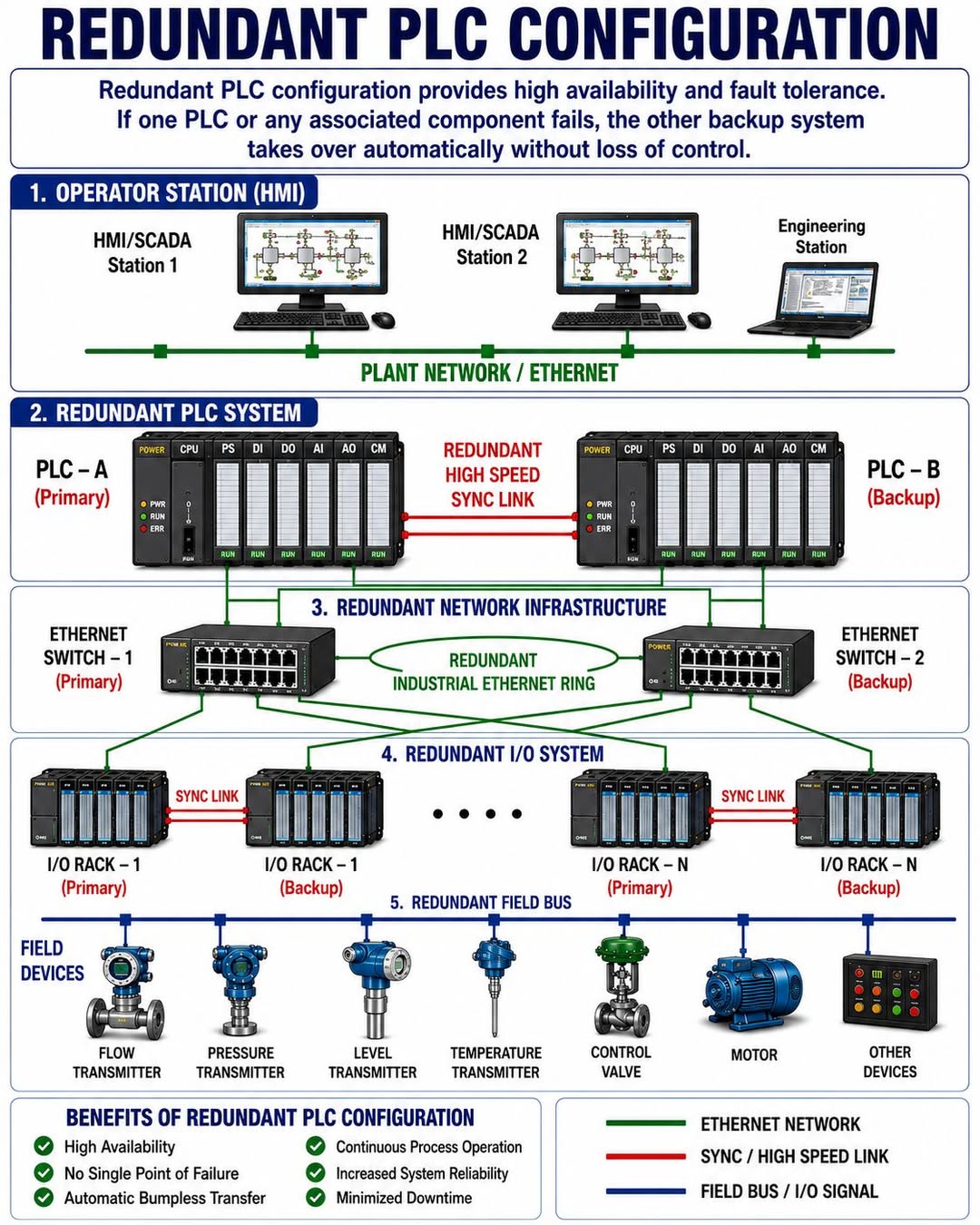

Redundant PLC Configuration

1. OPERATOR STATION (HMI)

Includes HMI/SCADA Station 1, HMI/SCADA Station 2, and Engineering Station. Operators monitor and control the process from these stations. Engineering station is used for programming and troubleshooting. Connected through plant network or Ethernet for seamless data exchange.

2. REDUNDANT PLC SYSTEM

Contains PLC-A (Primary) and PLC-B (Backup) running simultaneously. Both PLCs have identical hardware: Power supply, CPU, communication modules. Primary PLC controls the process while backup stays synchronized. If primary fails, backup takes over automatically without process interruption.

3. REDUNDANT NETWORK INFRASTRUCTURE

Includes Ethernet Switch 1 (Primary) and Ethernet Switch 2 (Backup). Dual network paths prevent communication loss during switch failure. Primary PLC communicates through primary switch by default. Backup path activates automatically if primary network fails.

4. REDUNDANT I/O SYSTEM

Contains I/O Rack 1 (Primary) and I/O Rack 1 (Backup) for each rack. Both racks receive identical signals from field devices. Backup I/O rack remains synchronized with primary rack. If primary I/O rack fails, backup rack continues operation without data loss.

5. SYNC LINK

High-speed dedicated communication link between primary and backup PLCs. Transfers all program data, I/O status, and memory values continuously. Ensures backup PLC is always ready to take over. Synchronization happens in milliseconds for bumpless transfer.

6. FIELD DEVICES

Includes flow transmitters, pressure transmitters, level transmitters, and temperature transmitters. Also includes control valves, motors, and other I/O devices. Connected to both primary and backup I/O racks simultaneously. Single field device serves both redundant systems through signal splitting or dual sensors.

7. BENEFITS – HIGH AVAILABILITY

System remains operational even when components fail. Eliminates unplanned shutdowns due to PLC or network failure. Critical processes continue without interruption. Ideal for continuous industries like refining, power, and chemical plants.

8. BENEFITS – NO SINGLE POINT OF FAILURE

Every critical component has a backup counterpart. Failure of one PLC, network switch, or I/O rack does not stop production. Automatic failover requires no operator intervention. System design identifies and eliminates all single failure points.

9. BENEFITS – AUTOMATIC BUMPLESS TRANSFER

Switch from primary to backup happens without process disturbance. No spikes, bumps, or control interruptions during transfer. Backup already has current data through synchronization. Operator may not even notice the transfer occurred.
